Our Machines
Explore our range of performance-ready used industrial machinery
Heavy Duty Pressing

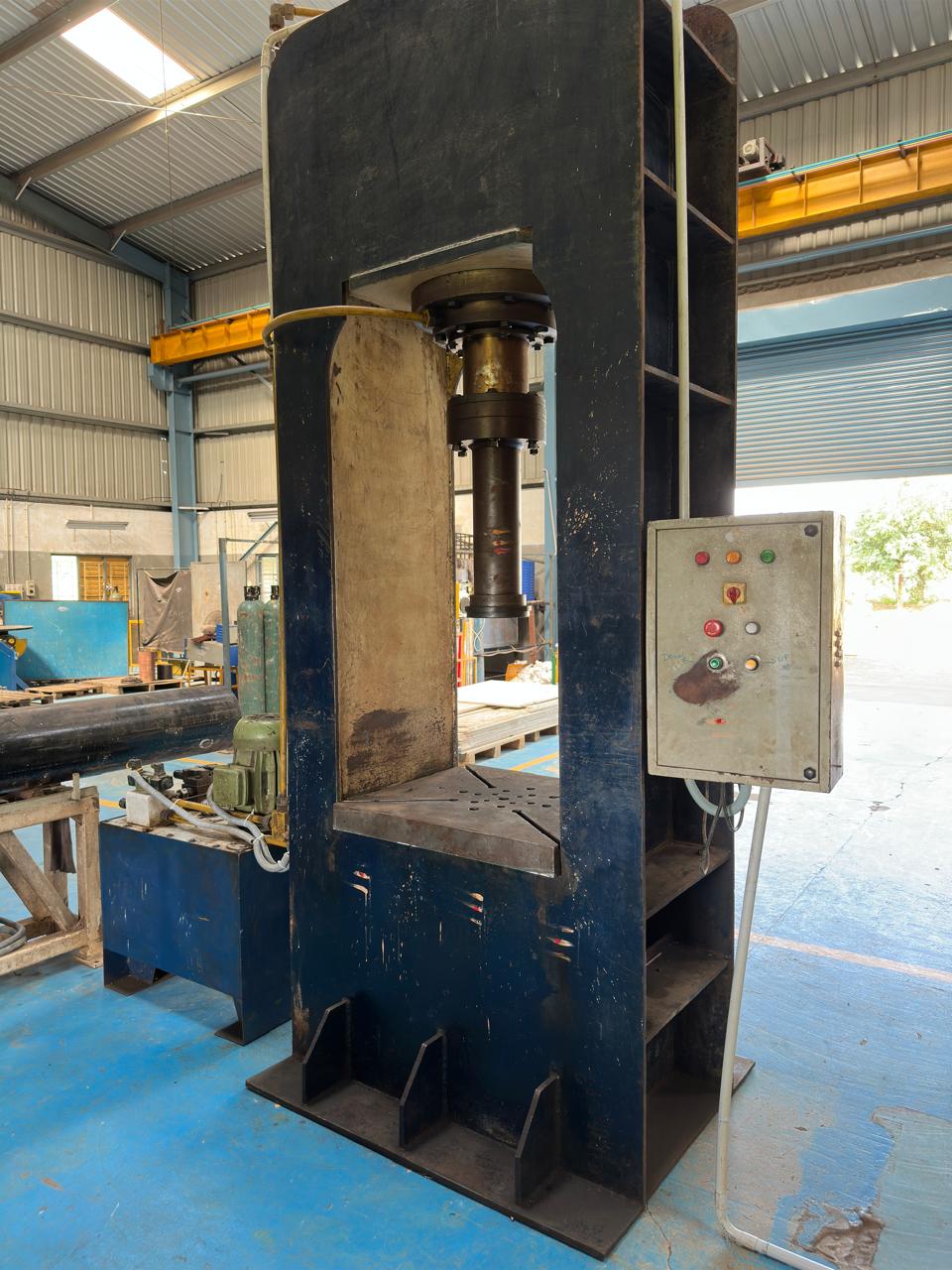

Used Hydraulic Press (150 Ton)
Powerful hydraulic press for industrial forming and stamping operations
Technical Specifications
Motor
10 HP
Stroke Length
650 mm
Table Size
800 × 700 mm
Day Light Height
1400 mm
Key Features
- ▪High pressure capacity
- ▪Robust construction
- ▪Precision control
- ▪Industrial grade
Spline Production

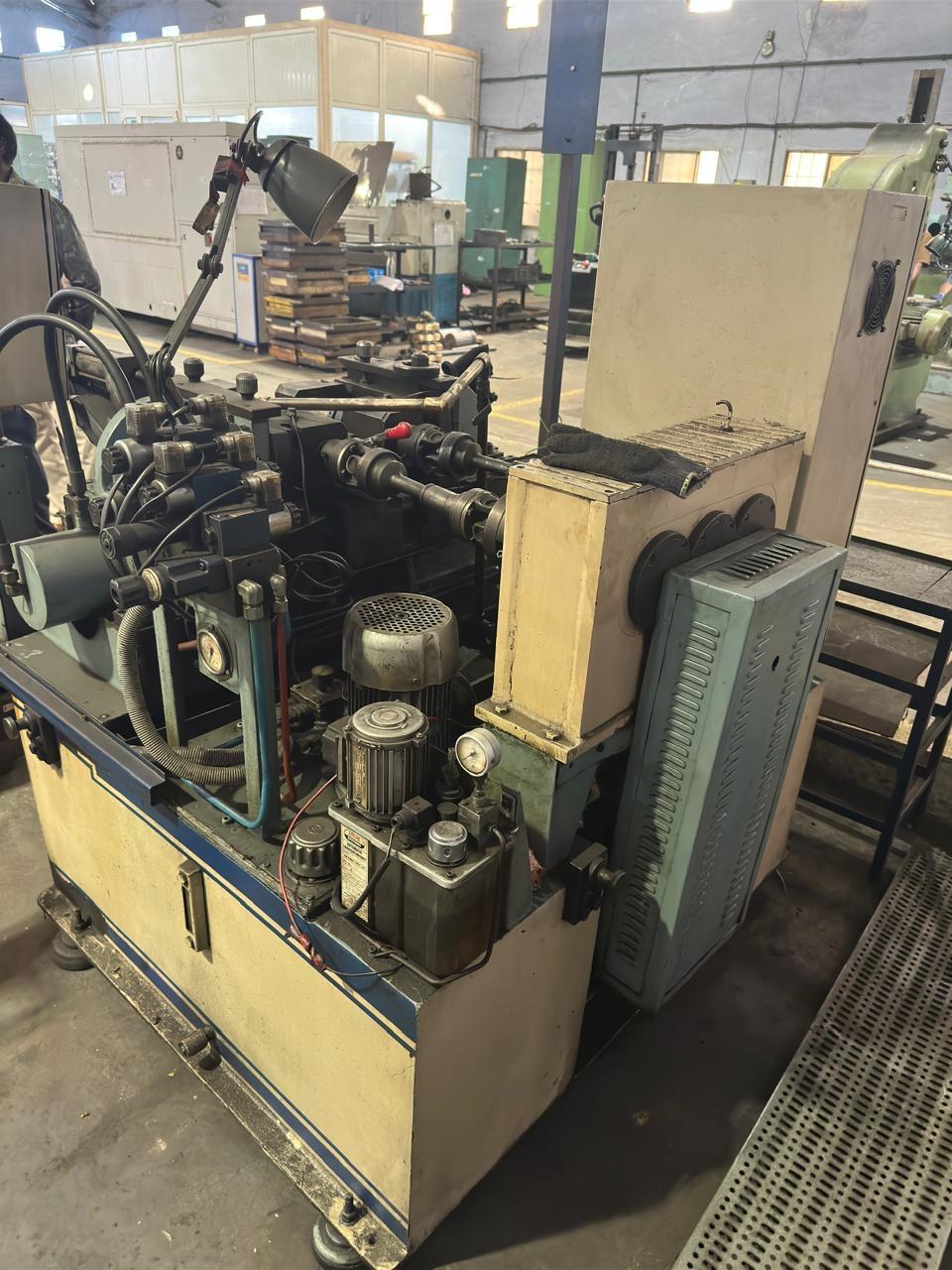

Used 16 Ton Spline Rolling Machine
Advanced spline rolling machine for high-precision thread and spline manufacturing
Technical Specifications
Max Roll Diameter
180 mm
Bore Size
54 mm std. / 69.85 mm
Max Roll Width
125 mm
Max Job Diameter
50 mm
Max Pitch
4 mm
Max Spline
1.00 mod (higher with helix)
Min Job Diameter
5 mm
Max Spline Length
100 mm std. (higher available)
Max Swing of Job
100 mm (Flange Dia)
Roll Shaft RPM
Infinitely variable 0–50 RPM
Connected Load
~8.5 HP
Floor Space
1.5 × 1.5 meters
Machine Weight
~2.4 tons
Key Features
- ▪Hardened & ground helical gears (no worm & worm gears)
- ▪Centralized lubrication with PLC controls
- ▪PLC with 24 Volts DC electrical control
- ▪Both roll shafts move towards center on imported linear guides
- ▪Positive depth/size control arrangement
- ▪Spline rolling, force feeding system, plunge rolling cycle
